Precision Cooling Fixtures and 3D Scanning Inspection

In modern composite molding—particularly in SMC (Sheet Molding Compound) and BMC (Bulk Molding Compound) processes—dimensional accuracy, repeatability, and post-molding stability are fundamental. As a leading mold manufacturer, MDC Mould is continuously optimizing not just the tooling, but the entire downstream validation process. This article introduces our latest innovation: a custom cooling fixture engineered in-house and integrated with advanced 3D scanning inspection to guarantee consistent and reliable dimensional control.

Why Dimensional Stability Matters in Composite Molding

Composite materials like SMC and BMC are known for their excellent strength-to-weight ratio, corrosion resistance, and design flexibility. However, they are also prone to thermal shrinkage and post-molding deformation due to temperature differentials, uneven pressure, or uncontrolled cooling. Without a strategy to simulate real-use cooling conditions, even a precisely molded part may fall outside tolerance during the cooling phase.

To mitigate this, MDC Mould has developed a process that combines custom part-specific cooling fixtures with non-contact 3D metrology, bridging the gap between mold fabrication and functional performance verification.

Our Custom Cooling Fixture: Designed for Functionality and Accuracy

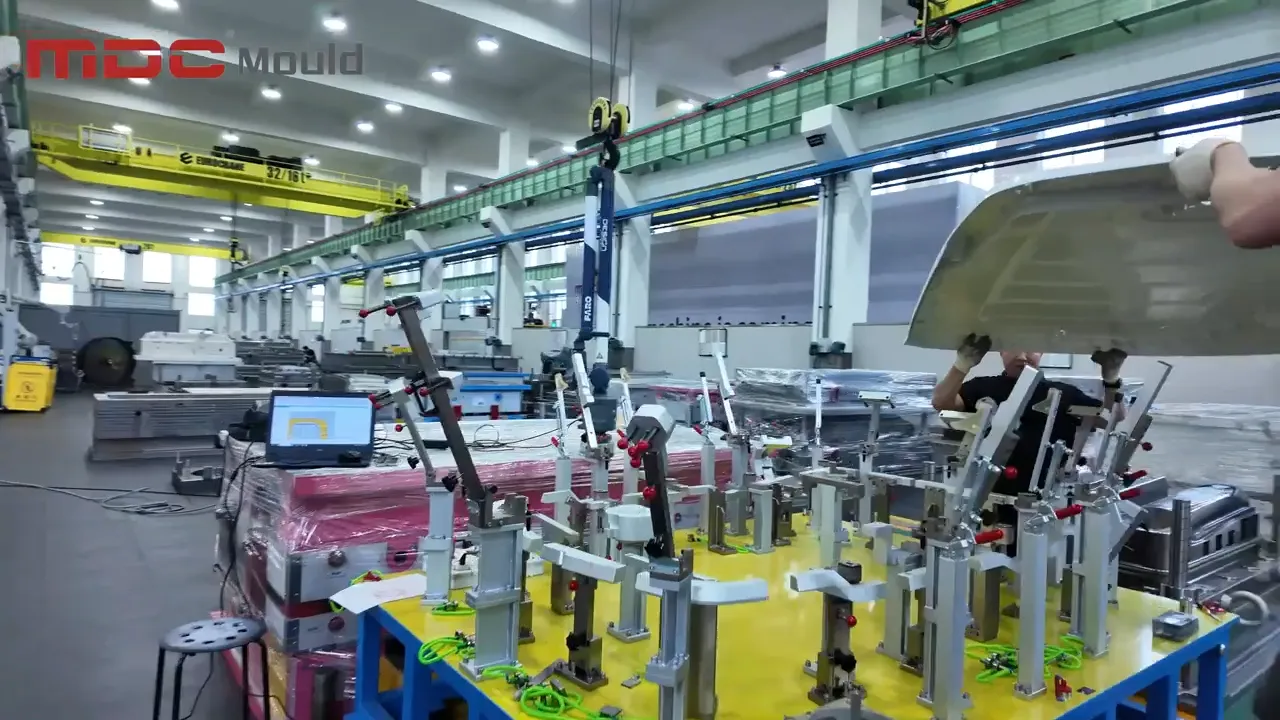

The cooling fixture is more than just a supporting frame—it is a precision-engineered device tailored to the exact geometry of the molded part. Here's how it works:

• Shape Conformance: The fixture mirrors the molded part’s final geometry, ensuring uniform cooling without stress points or sagging.
• Post-Molding Simulation: By simulating how the part would cool in real use, we prevent unrealistic deformation during measurement.
• Stabilization During Scanning: The fixture holds the part in position to enable reliable and repeatable 3D inspection.
• Material-Specific Tuning: Each fixture is designed with the thermal behavior of the composite material in mind.

Fixtures are custom-built in our tool shop using CAD/CAM systems, ensuring high fitting accuracy and repeatability. This integration of engineering design with quality inspection reflects our deep understanding of mold-formed component behavior.

Advanced 3D Scanning Inspection for High-Resolution Feedback

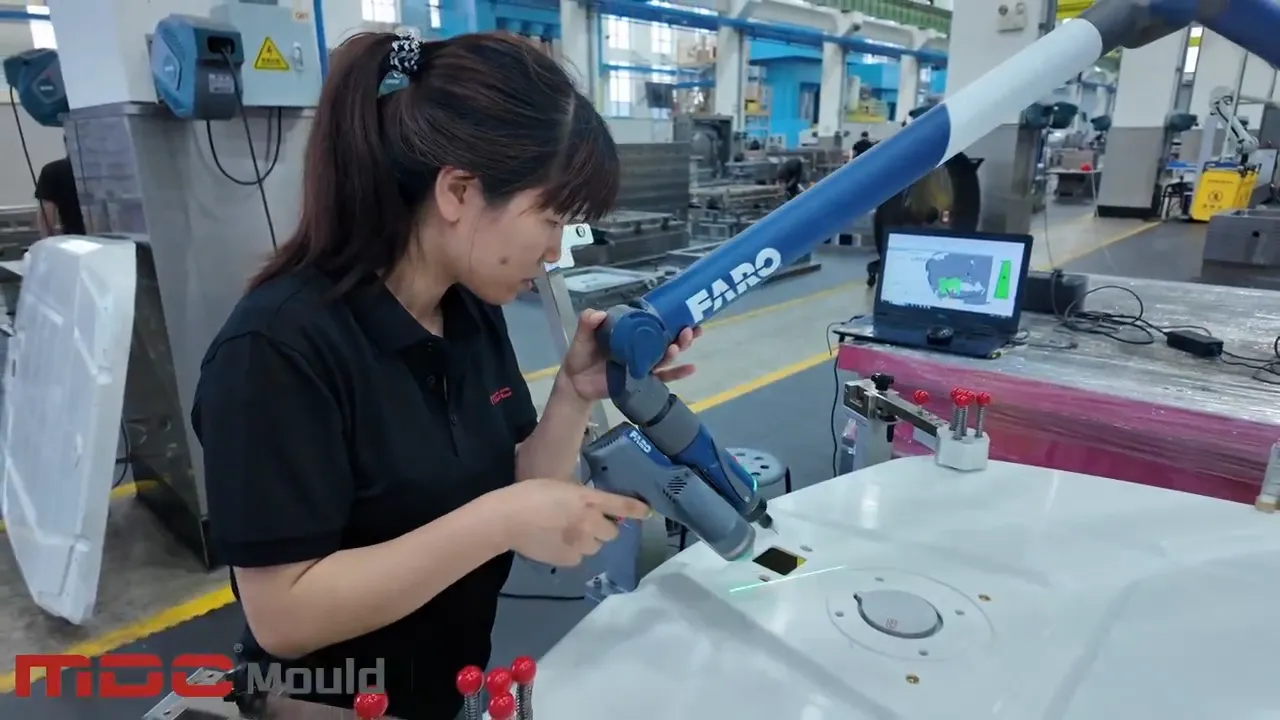

Once the part is fully cooled and stabilized, it is scanned using state-of-the-art 3D scanning equipment that generates detailed point cloud data. We then:

• Align the scan data with the original CAD model
• Run full 3D dimensional analysis with deviation mapping
• Generate a complete 3D inspection report with color-coded tolerances
• Deliver this report to the customer for transparent feedback and sign-off

This non-contact inspection process is faster, more accurate, and more comprehensive than traditional CMM-based techniques, especially for freeform or large-area parts.

Integrated Quality Assurance: Closing the Loop

Our combined use of cooling fixtures and 3D scanning inspection offers an end-to-end solution for dimensional control. This method ensures that the molded part conforms not only to its designed geometry, but also to its functional form after cooling—the true test of manufacturing success.

Benefits at a Glance:

• Reduced rejection rates through early detection of dimensional drift
• Repeatable QA procedures that can be benchmarked and scaled
• Enhanced customer trust through full transparency of inspection data
• Faster iterations for pilot runs and new product development

Applications Across Industries

This solution is particularly suited to industries where geometric precision and thermal stability are critical, including:

• Automotive: Battery covers, inner roof panels, trunk boards, engine splash shields
• Electrical: Enclosures and insulators made from BMC/SMC
• Infrastructure: GRP water tank components with large surface areas
• Aerospace: Lightweight structural panels requiring strict tolerance control

Why Choose MDC Mould?

We’re more than a mold supplier—we are a comprehensive partner in precision manufacturing. From mold design and tool fabrication to post-molding inspection and process optimization, MDC Mould provides a complete solution rooted in engineering excellence.

With a focus on composite mold development—including SMC molds, BMC molds, carbon fiber tooling, and compression molds—we understand the challenges and requirements of your applications.

Let’s Engineer Success Together

If your project demands tight tolerances, high repeatability, and confidence in quality assurance, MDC Mould is your trusted partner. Contact us today to learn how our cooling fixtures and 3D inspection workflows can add value to your production line.
