Why pairing compression-molded composites with high-performance insulation boards sets a new benchmark in structural stability, energy efficiency, and lifecycle durability.

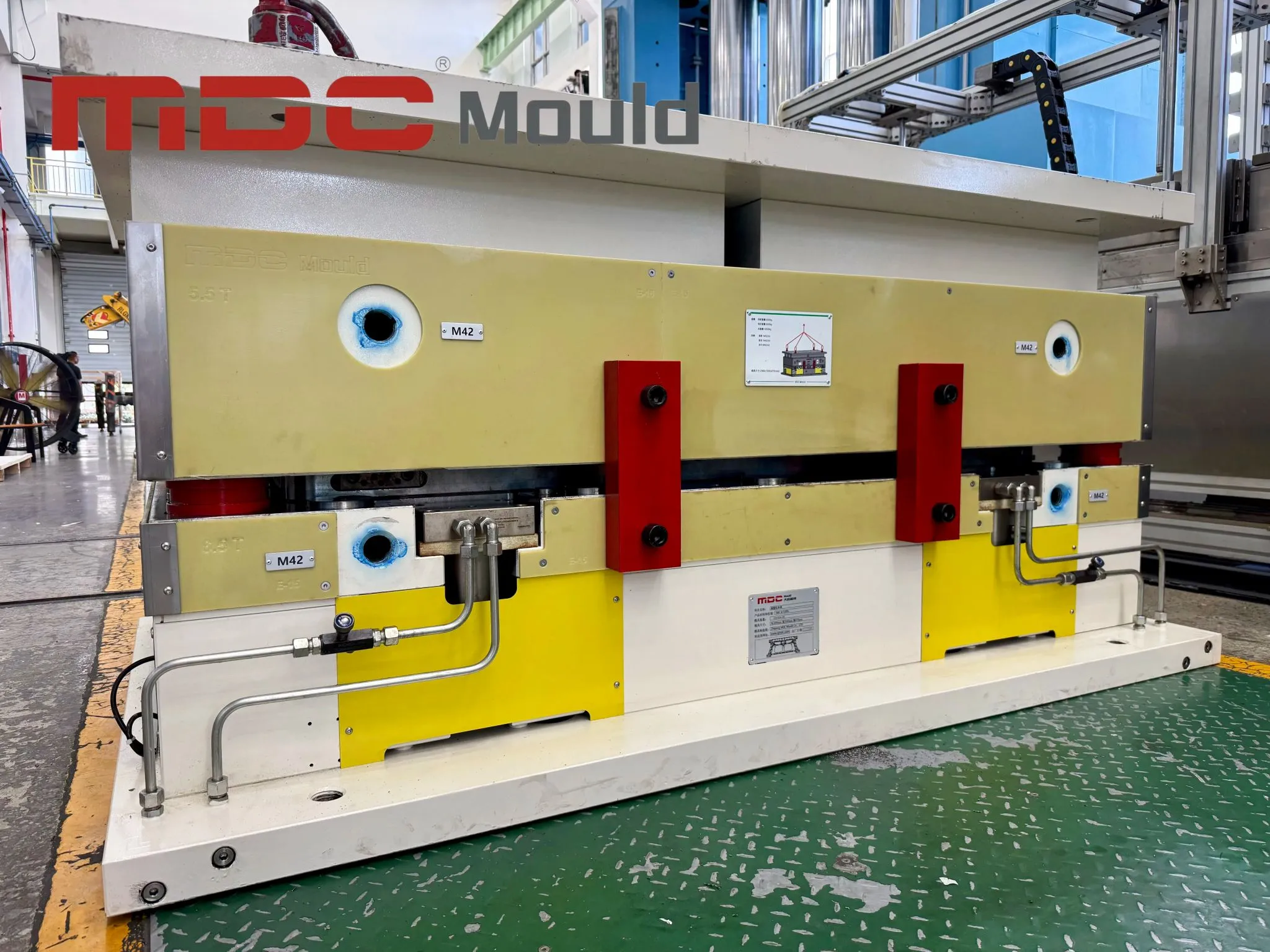

1) What Is a Complete Compression Mold?
A compression mold forms SMC, BMC, or FRP components under controlled heat and pressure. A complete compression mold system includes the tool, matched-metal dies, heating and cooling circuits, ejector mechanisms, and a validated process window (pressure–temperature–time) to achieve repeatable quality and short cycle times.
PrecisionDimensional tolerances down to ±0.2–0.5 mm (design dependent).
ThroughputOptimized cycle time via balanced thermal circuits and charge placement.
ConsistencyUniform pressure distribution minimizes porosity, warpage, and knit lines.
2) Insulation Boards: Types & Functional Roles
Insulation boards reduce heat transfer, stabilize temperatures, and enhance fire and acoustic performance when paired with molded composite skins or cores.
Board Type
Core Benefits
Typical Use with Molded Panels
Notes
PU (Polyurethane)
High R-value per thickness; lightweight
Building envelopes, modular wall/roof cassettes
Good balance of cost and performance
XPS (Extruded Polystyrene)
Low water uptake; strong compressive strength
Façade panels, cold-chain enclosures
Stable edges; easy machining
Phenolic Foam
Superior fire performance; low smoke
Public buildings, transport interiors
High safety-critical environments
Mineral Wool
Non-combustible; thermal + acoustic
Fire-rated façades, industrial housings
Excellent sound dampening
Integration tip: When bonding insulation boards to compression-molded skins, select adhesives compatible with service temperatures and fire-rating targets (e.g., intumescent or low-smoke halogen-free chemistries).
3) Why the Combination Delivers Stability, Efficiency, and Durability
Stability
Structural integrity: Compression-molded skins provide high flexural and impact strength for panelized systems.
Fire & toxicity: Phenolic cores and halogen-free systems support stricter fire/smoke criteria.
End-of-life pathways: Mechanical recycling of FRP offcuts and thermal recovery options (policy-dependent).
6) Selection & Integration Guide
Design Checklist
Load cases: Wind/snow loads for façades; vibration/impact for transport; enclosure IP ratings for electrical.
Thermal envelope: Target U-value/R-value and local energy codes.
Fire performance: Specify test standards (e.g., reaction-to-fire, smoke development) required for occupancy type.
Durability: UV exposure class, chemical splash, salt spray, freeze–thaw cycles.
Process Recommendations
Charge strategy: Use pre-weighed SMC/BMC charges; optimize flow to avoid knit lines.
Thermal control: Segment mold channels; validate soak, cure, and cool-down for flatness.
Bonding & fastening: Surface prep (corona/abrade/solvent), adhesive selection (temperature, fire), and mechanical backup where needed.
QA/QC: Track SPC for thickness, fiber volume, void content; non-destructive testing for critical parts.
Pro tip: Combine in-mold coatings (IMC) for Class A surfaces with UV-stable topcoats on sun-exposed façades to maximize color retention and weathering.
Q1. How do I choose between PU, XPS, phenolic, and mineral wool?
PU/XPS for highest thermal efficiency and lightweight; phenolic where fire/smoke is critical; mineral wool for non-combustibility and acoustic control.
Q2. Can compression-molded skins achieve Class A finishes?
Yes—use IMC, optimized venting, and post-polish if needed. Tool surface quality and release systems are decisive.
Q3. What panel thickness is typical?
Common façade cassettes: 20–60 mm overall, depending on wind loads and U-value targets. Transport and enclosure panels vary by spec.
