Advanced Tooling Solutions for High-Precision Medical Imaging Housing

In the medical industry, precision is not optional—it is critical. From diagnostic imaging systems to advanced medical devices, every component must meet strict standards for accuracy, safety, and reliability.

At MDC Mould, we specialize in CNC machining for high-precision MRI housing mould projects, supporting the production of complex medical equipment components with consistent quality and performance.

This article provides an in-depth look at how medical mould manufacturing is achieved through advanced machining, process control, and engineering expertise.

1. Why MRI Housing Moulds Require High-Precision CNC Machining

MRI systems demand extremely precise housing structures to ensure proper alignment, stability, and operational safety. A high-quality MRI housing mould must deliver:

• Strict dimensional accuracy
• Smooth and defect-free surfaces
• Stable structural performance
• Consistency across production cycles

Even minor deviations can affect the performance of medical equipment, making precision CNC machining essential.

2. CNC Machining Process for Medical Mould Manufacturing

The production of a medical mould involves multiple controlled machining stages:

2.1 Rough Machining

• Fast material removal
• Initial shaping of the mould structure
• Preparation for precision machining

2.2 Semi-Finishing

• Refinement of contours
• Improved dimensional accuracy
• Reduction of internal stress

2.3 Finishing

• Achieving final tolerances
• High-quality surface finish
• Preparation for polishing or coating

Each stage is carefully managed to ensure that the final CNC mould meets medical-grade standards.

3. Engineering Challenges in MRI Housing Mould Machining

Complex Geometry

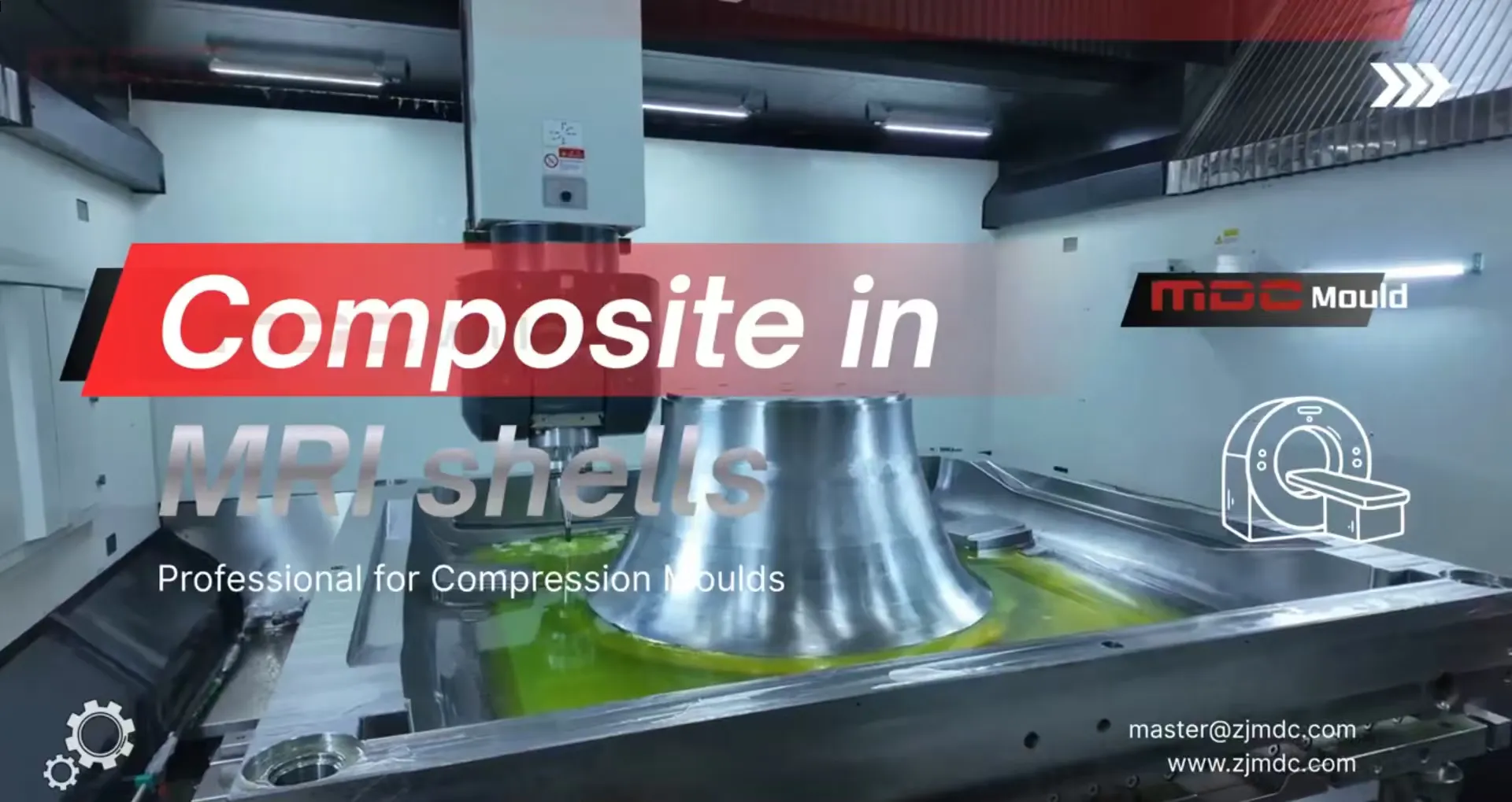

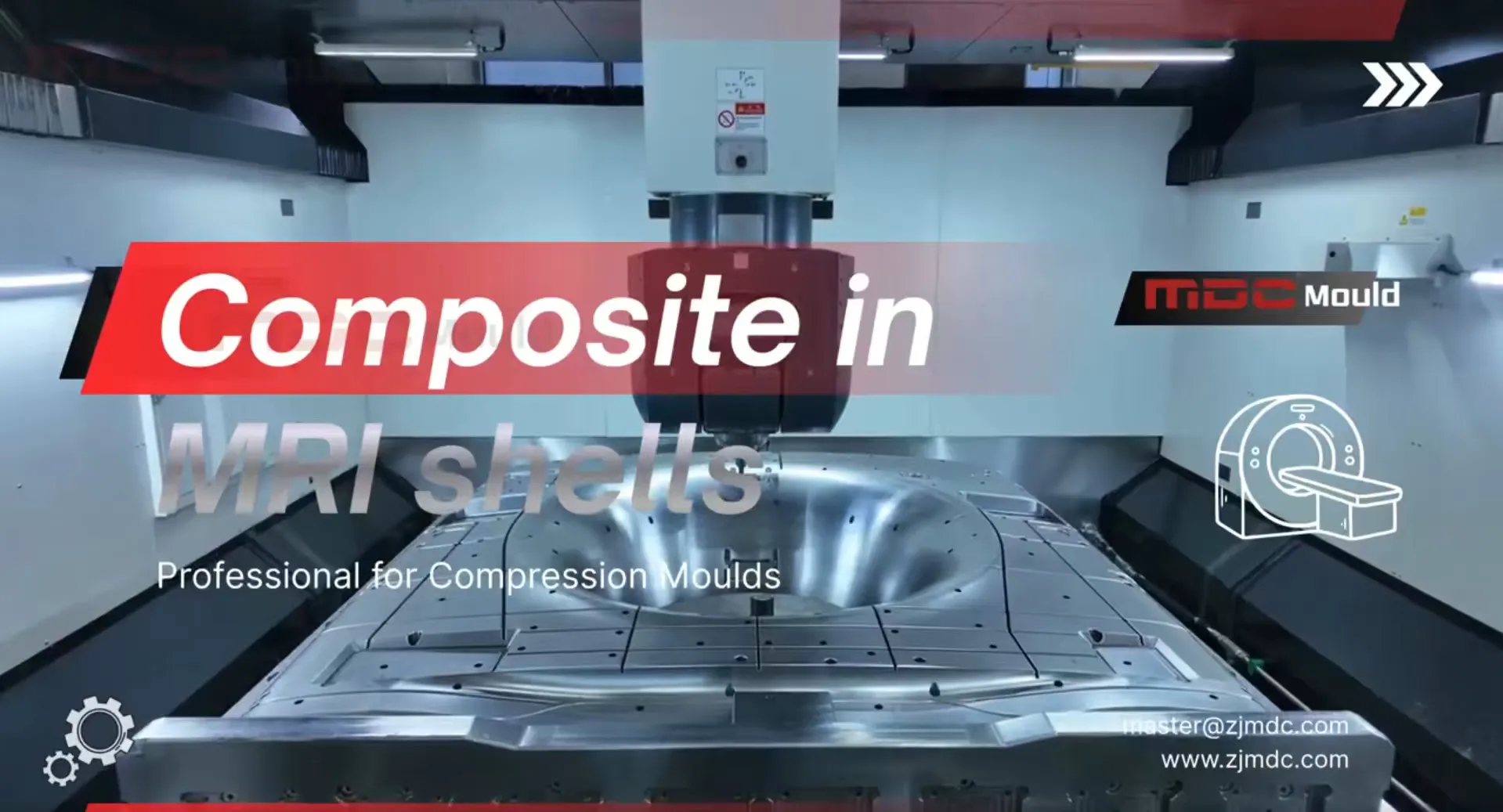

MRI housings often feature large curved surfaces and integrated structures. Advanced multi-axis CNC machining ensures precise shaping of these complex geometries.

Surface Quality Requirements

Medical applications require smooth, defect-free surfaces. High-speed finishing and polishing techniques are used to achieve superior results.

Dimensional Stability

Temperature control and precision inspection systems are essential to maintain tight tolerances during machining.

4. Process Control and Quality Assurance

At MDC Mould, every step of medical mould manufacturing is monitored and controlled:

• Real-time machining process tracking
• Tool wear monitoring
• Dimensional inspection at key stages
• Strict quality control standards

This ensures:

• Consistent product quality
• Reduced defect rates
• Reliable performance in medical applications

5. Material Selection for MRI Mould Tooling

Choosing the right material is essential for successful CNC mould making. Common materials include:

• Tool steel for durability and strength
• Aluminum for lightweight and fast machining
• Composite tooling materials for specialized applications

Material selection impacts machining efficiency, tool life, and final product quality.

6. From CNC Machining to Medical Application

After machining, moulds are used in processes such as:

• Compression moulding
• Thermoforming
• Composite moulding

These processes produce:

• MRI equipment housings
• Medical device enclosures
• Structural composite components

High-quality tooling ensures that final products meet strict medical standards.

7. Why Choose MDC Mould for Medical Tooling

MDC Mould combines advanced technology with engineering expertise to deliver high-performance precision tooling solutions.

• Extensive experience in CNC machining
• Advanced equipment and multi-axis machining capability
• Strict quality control systems
• Reliable global delivery

We support customers in the medical industry with dependable and high-quality mould solutions.

Conclusion

CNC machining for MRI housing mould represents one of the highest standards in modern manufacturing. It requires precision, expertise, and strict quality control at every stage.

At MDC Mould, we ensure that every machining step is carefully executed to meet demanding medical requirements, helping our customers deliver reliable and high-performance medical equipment worldwide.
